Electrochemical Coating

Advanced Cathodic Electro Deposition (CED) Plants – Precision Coating, Maximum Protection

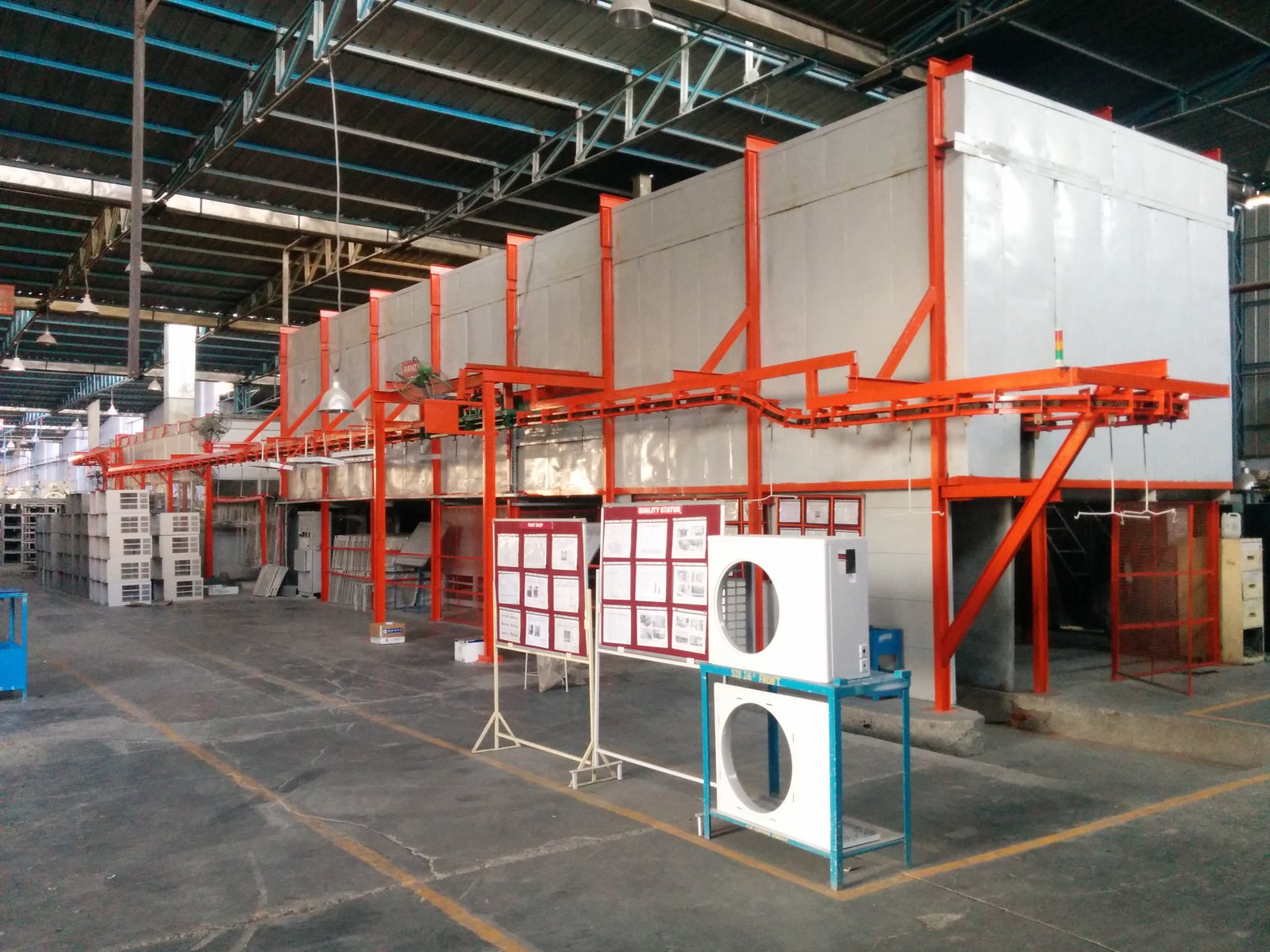

Overview

At Shree Sai Associates (SSA), we specialize in manufacturing and exporting high-performance CED Coating Plants across India. Engineered for consistency, durability, and energy efficiency, our CED systems offer advanced protection for metal surfaces by applying a uniform and corrosion-resistant coating using an electrochemical process.

Whether you're in automotive, industrial equipment, electronics, furniture, or home appliances, our customized CED plants ensure long-lasting, eco-friendly finishes with minimal maintenance and maximum ROI. SSA’s CED coating systems deliver a smooth, even, and highly corrosion-resistant finish with excellent repeatability. Designed for efficient material usage and energy savings, our plants integrate seamlessly with pre-treatment, ultrafiltration, and curing ovens to ensure best-in-class coating performance and reliability.

Anti-Corrosive Layer

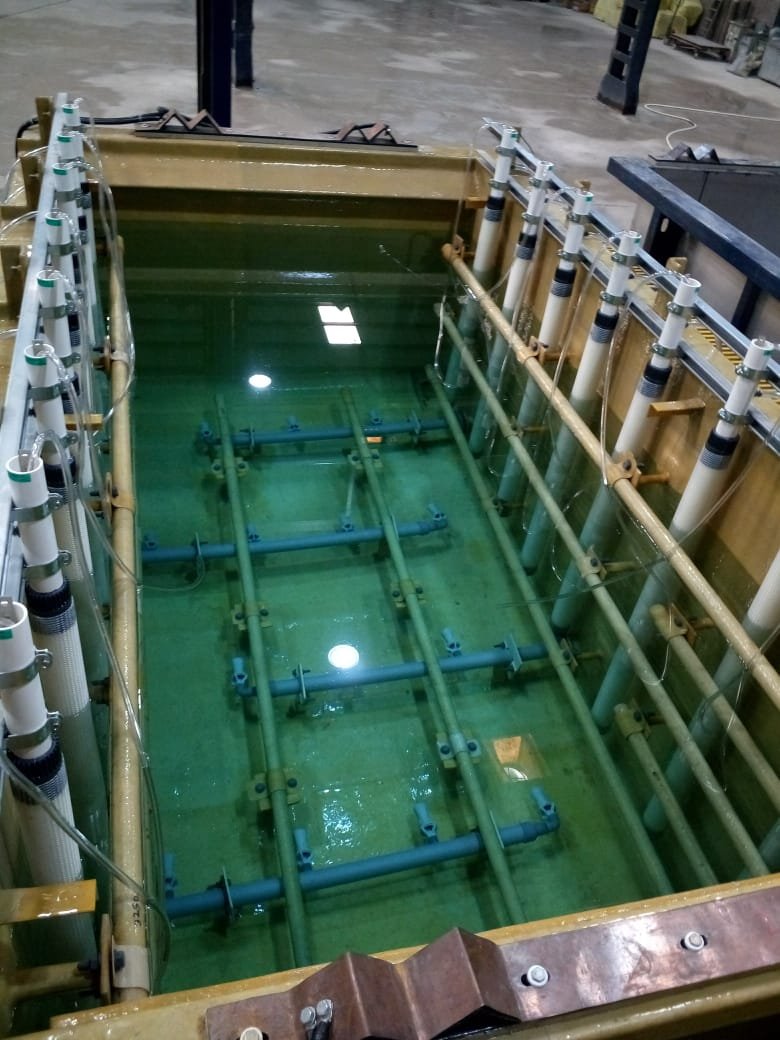

CED Plant Anode Cells Enclosure Overview

Why Choose SSA’s CED Plants?

Uniform Coating

Smooth, completely even molecular layer finish with exceptional salt spray corrosion resistance.

Eco-Friendly Technology

Minimal VOC emissions utilizing recyclable chemical compositions matching global laws.

Energy-Efficient

Advanced solid-state thyristor rectifiers & digital temperature controls cut baseline operating bills.

Pan India Service

Trusted project engineering authority, serving leading manufacturing hubs nationwide.

Custom-Built Solutions

Tailored layout plans built contextually matching your volume yield targets and floor space.

Operational Sequence

How Our CED Coating Plants Work

01

Pre-Treatment: Multi-tank degreasing, phosphating, and demineralized rinsing cycles prepare clean surfaces.
02

CED Bath Process: Direct current electrodeposition creates an exceptionally uniform, dense organic paint film over deep recesses.
03

Ultrafiltration & Rinsing: Multi-stage closed loop ultrafilter cascades maximize paint recovery and ensure waste minimization.
04

Curing in Oven: Controlled cross-linking baking processes hardens the deposited film parameters perfectly inside high-performance ovens.
05

Inspection & Packaging: Strategic thickness checks qualify finished products before secure grouping for terminal transit.

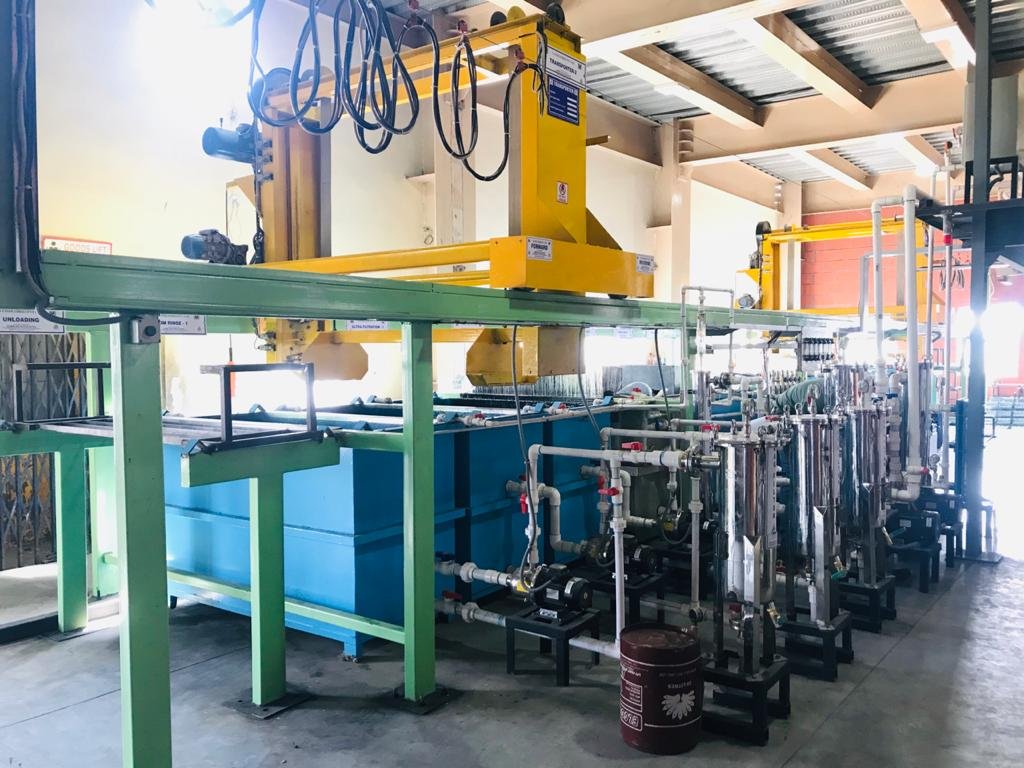

Turnkey Industrial CED Line Workings Flow Diagram

Enquire Now

Plant Automation

Live System Fluidization

Watch our automated programmatic hoist cells diving structural components precisely through consecutive immersion baths with zero manual friction points.

Global Compliance

CED Coating Industrial Deployment Scenarios Matrix

Versatility

Applications Across Industries

Our high performance electrodeposition plants are meticulously engineered to provide superior throwing power and complete line compliance across major market divisions:

Automotive Coating Lines

Trusted by premier OEMs and Tier-1 suppliers for priming chassis, frames, and deep structural profiles.

Appliance Manufacturing

Highly continuous rust proof priming coat layers over sheet steel and interior metal casing walls.

Electronics & Panels

Fine micrometric insulation layer deployment over sophisticated industrial switchgear panels.

Furniture & Fixtures

Enhanced surface finish resistance properties over complex fabricated metal office furniture items.

General Engineering

Highly customizable tank immersion configurations perfectly matched for batch or continuous sub assembly operations.

Process Flow

How CED Technology Operates

Active Immersion

Complete dip processing achieves zero air gaps inside hard to reach component crevices.

Ultrafiltration Rinsing

Closed-loop chemical fluid rinses achieve continuous paint recovery saving material material waste.

Baking & Fusion

High accuracy industrial heating ovens securely fuse polymer matrices for lifetime protection.

Request a Free Demo Today

Value Proposition

Benefits of SSA’s CED Coating Solutions

Sustainable Operations

Drastically reduced environmental impact using closed-loop recyclable paints matching strict global thresholds.

Scalable Integration

Perfect configuration mapping covering manual batch hoists, heavy conveyorized, and completely modular tank setups.

Smart Process Control

PLC-integrated systems with intuitive touch HMI software screens for total hassle-free operation controls.

High Client Retention

Our clients consistently return to us 7–8 times for secondary cell upgrades and capacity additions due to elite field engineering delivery.

User Diagnostics

What Our Clients Say

“After installing SSA's CED coating line, our rejection rate dropped by 40%. The system paid for itself within the first year.”

Plant Head

Tier-1 Automotive Supplier

“Exceptional build quality, technical support, and efficiency. Our third repeat order with SSA.”

Production Manager

Industrial Equipment Manufacturer

Engineering Specifications

Key System Features

High-Performance Rectifiers

Stable, ultra-precise continuous current control for highly repeatable paint film parameters.

Fully Automated Lines

Seamless overhead conveyor track loop integration using advanced central PLC/HMI software blocks.

In-House Curing Ovens

Perfect thermal uniform air distribution systems for flaw-free component polymer baking.

Custom Speed & Capacity

Line transport step speed intervals and dip tank sizing tailored explicitly to your target yield output metrics.

Filtration, Heating & Dosing

Built-in process controls optimize continuous anolyte chemical dosing and liquid clarity metrics seamlessly.

QCDS Aligned Engineering: Quality, Cost, Delivery, Sustainability parameters matched safely.

Support Panel

Frequently Asked Questions

What type of materials can be coated in your CED plants?

Mild steel, stainless steel, cast iron, and pre-treated aluminum structures can be coated smoothly.

Are SSA’s CED plants environmentally compliant?

Yes. We strictly meet all standard operational environmental norms including RoHS and low-VOC threshold limits cleanly.

Can SSA build a turnkey CED coating system?

Absolutely. We deliver complete custom turnkey paint shops right from spatial architecture design up to final commissioning verification steps.

Ready to Upgrade to CED?

Get uniform, highly durable, and eco-friendly electrodeposition coatings with SSA’s full custom turnkey CED solutions.

Request a Free Demo Today! Contact Us To Learn More Download Our Brochure
